Finding the right four-channel automotive oscilloscope can make difficult electrical faults far easier to isolate. The models in this roundup range from portable, vehicle-focused diagnostic scopes to high-bandwidth benchtop instruments for advanced waveform analysis.
We compare channel count, bandwidth, sampling performance, portability, included accessories, software, and overall suitability so you can choose a scope that matches your workshop, vehicle coverage, and diagnostic workflow.
Best 10 Four Channel Automotive Oscilloscopes Picks for 2026
Flagship Autel Integration
- Four-channel, 20 MHz scope with 12-bit resolution
- Serial decoding, guided presets and waveform library
- Works with select Autel tablets or Windows 10/11
Best For: Autel technicians seeking advanced waveform diagnostics
High-Bandwidth USB Value
Hantek 6074BE 4CH Automotive Scope
- Four channels with 70 MHz bandwidth
- 1 GSa/s sampling and over 20 auto measurements
- USB-powered operation for Windows computers
Best For: Mobile Windows-based automotive testing
Phoenix Workflow Specialist
- 50M memory depth with fast waveform storage
- Recording, playback, math analysis and FFT
- Requires a compatible TOPDON Phoenix tool
Best For: Technicians already using Phoenix diagnostic equipment
Standalone Touchscreen Flexibility
Micsig SATO1004 4-Channel Scope
- 100 MHz bandwidth and 1 GSa/s sampling
- Eight-inch Android touchscreen with physical controls
- Battery-powered with 32GB storage and remote viewing
Best For: Mobile technicians wanting a dedicated handheld scope
Versatile USB Diagnostic Scope
- Four channels with 70MHz bandwidth and 1GSa/s sampling
- Preset tests cover more than 80 automotive items
- Combines scope, DMM, multimeter, and waveform generator
Best For: Portable Windows-based automotive diagnostics
Advanced Automotive Waveform Analyzer
- 12-bit capture with ±1% DC measurement accuracy
- Advanced triggers target intermittent vehicle faults
- Decodes CAN, CAN FD, FlexRay, LIN, UART, and I²C
Best For: Professional shops and advanced vehicle diagnostics
High-Resolution Benchtop Scope
- 200MHz bandwidth across four analog channels
- 12-bit resolution and 4GSa/s sampling
- 250Mpts UltraVision memory included
Best For: Bench-based automotive and engineering signal analysis
Best All-in-One Kit
- Eight analog channels with 12-bit resolution
- More than 80 automotive diagnostic functions
- Programmable crankshaft and camshaft signal simulation
Best For: Broad automotive testing on a Windows PC
Best Bench Scope
- Four channels and 100MHz bandwidth
- 1GSa/s sampling with 24Mpts memory
- Supports 16 digital channels and optional MSO upgrade
Best For: Bench-based automotive and electronics analysis
Best Guided Automotive Diagnostics
- Four channels with 12-bit, ±1% measurement accuracy
- Decodes CAN, CAN FD, FlexRay, LIN, UART, and I²C
- Guided tests include reference waveforms and wiring help
Best For: Professional automotive electrical and network diagnostics

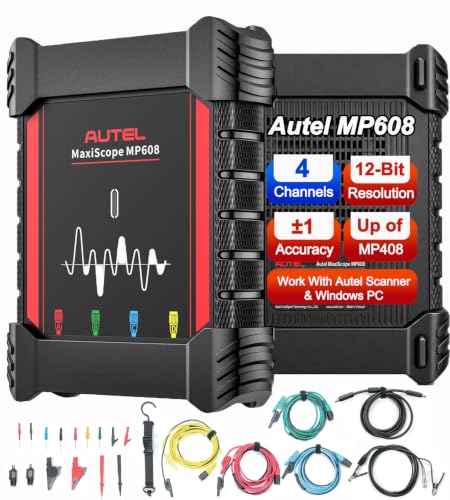

Flagship Autel Integration – Autel MP608
The Autel MP608 is a four channel automotive oscilloscope designed for technicians who want detailed waveform diagnostics without replacing an existing Autel scan tool. It offers simultaneous four-channel capture, 20 MHz bandwidth, up to 80 MS/s sampling, and 12-bit resolution for examining sensors, ignition, communication buses, and other vehicle circuits.
Best For: Autel users who want advanced scope functions on compatible tablets or a Windows 10/11 computer.
Pros:
- Four-channel capture with 32M memory depth and 12-bit vertical resolution.
- Guided presets, Auto Scale, waveform-library comparisons, and customizable probes simplify testing.
- Supports serial decoding, advanced triggers, math channels, FFT and XY views, and per-channel filtering.
- Works with selected Autel tablets and can also run standalone on Windows 10/11.
Cons:
- Compatibility depends on having a supported Autel tablet or Windows computer.
- The feature set may be more than needed for basic waveform checks.
With broad protocol support and technician-focused software, the MP608 is a strong choice for advanced automotive diagnostics. Verify tablet compatibility before buying, especially if you plan to use it with an existing Autel setup.
High-Bandwidth USB Value – Hantek 6074BE 4CH Automotive Scope
The Hantek 6074BE is a four channel automotive oscilloscope for computer-based testing of ignition systems, sensors, buses, and startup circuits. Its 70 MHz bandwidth, 1 GSa/s real-time sampling, USB 2.0 connection, and plug-and-play design make it a practical portable option for Windows users.
Best For: Mobile technicians who want a USB-powered four-channel scope that works with Windows laptops or tablets.
Pros:
- Four channels with 70 MHz bandwidth and 1 GSa/s real-time sampling.
- USB 2.0 connection requires no separate power supply.
- Includes more than 20 automatic measurements, PASS/FAIL checking, waveform recording, and replay.
- Supports Windows 7, Windows 8, and Windows 10 systems.
Cons:
- Requires a compatible Windows computer rather than operating as a standalone handheld scope.
- The supplied notes do not specify included automotive probes or accessories.
The 6074BE emphasizes sampling performance and portability at a computer-connected price point. It is worth considering when you already have a suitable Windows device and prefer USB operation over a dedicated display.
Phoenix Workflow Specialist – TOPDON Phoenix Scope
The TOPDON Phoenix Scope is a four channel automotive oscilloscope built for use with compatible TOPDON Phoenix diagnostic tools. It focuses on efficient waveform review, offering 50M memory depth, fast one-tap storage, recording and playback, advanced math operations, FFT analysis, and 23 automatic measurements.
Best For: Phoenix-tool users who want a tightly integrated scope workflow for circuit, sensor, actuator, ignition, and communication testing.
Pros:
- 50M memory depth supports broad waveform views and detailed zoomed analysis.
- Records, stores, and replays waveforms for later comparison and fault analysis.
- Provides two-channel math operations, FFT analysis, advanced triggering, and cursor controls.
- Offers 23 automatic measurements on one screen and customizable saved settings.
Cons:
- Does not work independently and requires a compatible Phoenix diagnostic tool.
- It is not compatible with Phoenix Nano.
This scope makes the most sense as an extension of an existing Phoenix ecosystem. Its storage, playback, and analysis features can streamline repeat testing, but buyers should confirm their exact Phoenix device is supported before ordering.
Standalone Touchscreen Flexibility – Micsig SATO1004 4-Channel Scope
The Micsig SATO1004 is a portable handheld four channel automotive oscilloscope with a 100 MHz bandwidth, 1 GSa/s sampling rate, and an eight-inch touchscreen. Its Android platform, physical controls, internal storage, and broad automotive test support make it suited to technicians who want a dedicated battery-powered instrument.
Best For: Mobile diagnostic work involving ignition, sensors, actuators, networks, charging, starting, communication, and pressure tests.
Pros:
- Four channels, 100 MHz bandwidth, and 1 GSa/s sampling provide substantial measurement capacity.
- Eight-inch touchscreen plus physical button controls support flexible operation.
- Supports CAN, LIN, FlexRay, K communication, and multiple automotive pressure tests.
- 32GB internal storage and Wi-Fi remote viewing through a smartphone app.
Cons:
- Remote operation depends on a stable Wi-Fi connection.
- The supplied notes do not describe included probe quantities or specialized accessories.
For buyers prioritizing a self-contained, portable platform, the SATO1004 stands out with its large display, battery power, connectivity options, and automotive-focused software. Its 100 MHz specification also gives it more bandwidth headroom than many basic four channel automotive oscilloscopes.
Versatile USB Diagnostic Scope – Hantek 6074BE
Hantek 6074BE Digital Oscilloscope 70MHz 1GSa/s 4CH USB Virtual Oscilloscope Diagnostic Tool
Check Price On AmazonThe Hantek 6074BE is a practical choice among four channel automotive oscilloscopes for technicians who want a portable, computer-connected diagnostic tool. Its 70MHz bandwidth, 1GSa/s real-time sampling, preset automotive tests, and USB-powered design support troubleshooting across ignition, sensors, engine, starting, and charging systems.
Best For: Mobile mechanics and DIY users who need a Windows-compatible, portable automotive scope with multiple built-in instruments.
Pros:
- Four channels with 70MHz bandwidth and 1GSa/s real-time sampling.
- Designed to inspect more than 80 automotive diagnostic items using preset modes.
- Combines an oscilloscope, multimeter, DMM, and waveform generator.
- USB 2.0 plug-and-play operation requires no extra power supply.
Cons:
- Requires a compatible Windows computer rather than offering a standalone display.
- Its corded USB setup may be less convenient where a computer is not available.
With automatic measurements, PASS/FAIL checks, waveform recording, and replay, the 6074BE offers a broad feature set for general automotive diagnostics. It is especially appealing when portability and multifunction operation matter more than a dedicated benchtop interface.
Advanced Automotive Waveform Analyzer – Autel MaxiScope MP608
The Autel MaxiScope MP608 is a professional option among four channel automotive oscilloscopes, aimed at detailed vehicle waveform and communication-bus diagnosis. Its 12-bit capture, advanced triggering, custom math channels, guided test library, and support for several automotive protocols make it suited to complex troubleshooting.
Best For: Professional repair shops, mobile mechanics, EV specialists, and users already working with compatible MaxiSys tablets or Windows PCs.
Pros:
- 12-bit resolution, ±1% DC measurement accuracy, 20MHz bandwidth, and up to 80MS/s single-channel sampling.
- Advanced edge, pulse-width, window, and distortion triggers help capture intermittent faults.
- Supports custom math functions and decoding for CAN, CAN FD, FlexRay, LIN, UART, and I²C.
- Includes automatic probe configuration and a complete set of leads, probes, attenuators, and accessories.
Cons:
- Compatibility is centered on specified MaxiSys tablets and Windows PCs.
- Its professional feature set may be more than casual users need for basic testing.
The MP608 stands out for signal precision, intermittent-fault capture, and network analysis rather than maximum bandwidth. For advanced automotive electrical work, its guided tests and protocol decoding can reduce setup and interpretation time.
High-Resolution Benchtop Scope – Rigol DHO4204
The Rigol DHO4204 is a high-resolution benchtop choice in the four channel automotive oscilloscopes category. With 200MHz bandwidth, four analog channels, 12-bit resolution, 4GSa/s sampling, and a touchscreen interface, it is suited to users who need a general-purpose lab instrument for automotive electrical signal work.
Best For: Repair facilities, engineering benches, and experienced users who prefer a dedicated touchscreen oscilloscope for detailed signal measurements.
Pros:
- Four analog channels with 200MHz bandwidth.
- 12-bit resolution and 4GSa/s real-time sampling support detailed waveform viewing.
- UltraVision architecture includes 250Mpts of memory, with 500M option noted.
- New ASIC chipset is designed to reduce front-end noise.
Cons:
- Its benchtop form factor is less portable than USB automotive scopes.
- The supplied notes do not identify automotive-specific guided tests or protocol decoding.
The DHO4204 favors bandwidth, resolution, memory depth, and a dedicated touchscreen over vehicle-specific workflows. It is a strong fit when automotive testing is part of broader bench or engineering work and portability is not the main priority.
Best All-in-One Kit – Hantek 1008C Automotive Scope
The Hantek 1008C is a practical choice for buyers comparing four channel automotive oscilloscopes but needing additional channels for broader testing. Its PC-based design combines eight analog channels, automotive test functions, and a programmable signal generator in one kit.
Best For: Electricians, technicians, hobbyists, and learners who want wide channel coverage and guided automotive diagnostic functions.
Pros:
- Includes more than 80 automotive diagnostic functions covering ignition, sensors, buses, actuators, and starting and charging systems.
- Provides eight analog channels, 12-bit resolution, 4K memory depth, and a 2.4MSa/s real-time sampling rate.
- Built-in programmable signal generation can simulate crankshaft and camshaft signals, with USB storage support.
Cons:
- Requires a Windows PC and USB 2.0 connection for operation.
- Its 2.4MSa/s sampling rate is more modest than the dedicated high-speed scopes in this roundup.
Choose this model when channel count, included probes, and automotive-focused functions matter more than standalone portability or advanced high-speed analysis.
Best Bench Scope – Rigol DS1104Z Plus
The Rigol DS1104Z Plus is a traditional bench oscilloscope for users comparing four channel automotive oscilloscopes with general-purpose electronics capability. It offers four channels, 100MHz bandwidth, a 1GSa/s sample rate, and deep 24Mpts memory.
Best For: Automotive technicians and electronics users who want a conventional four-channel bench instrument with substantial bandwidth and memory.
Pros:
- Provides four analog channels and 100MHz bandwidth for detailed signal viewing.
- Supports up to 1GSa/s sampling and 24Mpts of memory for capturing longer or faster events.
- Includes 16 digital channels and a built-in software bundle, with an optional MSO upgrade path.
Cons:
- It is a general-purpose bench scope rather than an automotive-specific diagnostic kit.
- The optional MSO upgrade may add cost for users who need digital logic analysis.
This is a strong fit for a workshop that values high bandwidth, deep memory, and conventional oscilloscope controls over guided automotive test libraries or included automotive probes.
Best Guided Automotive Diagnostics – Autel MaxiScope MP608
The Autel MaxiScope MP608 is a focused option for shoppers comparing four channel automotive oscilloscopes and wanting guided diagnostic support. This USB-powered, four-channel unit works with an Autel MaxiSys tablet and combines precise waveform capture with automotive test presets and bus decoding.
Best For: Professional automotive diagnostics involving sensors, actuators, communication networks, and intermittent electrical faults.
Pros:
- Offers 12-bit resolution, ±1% measurement accuracy, up to 80MS/s single-channel sampling, and 32M shared memory.
- Includes advanced trigger modes, customizable math channels, and automatic probe configuration.
- Decodes CAN, CAN FD, FlexRay, LIN, UART, and I²C, while guided tests provide reference waveforms and wiring assistance.
Cons:
- Its full workflow is designed around an Autel MaxiSys tablet.
- USB-powered operation may be less convenient than a standalone oscilloscope.
- The supplied notes identify a one-year manufacturer warranty.
The MP608 is the most automotive-specialized choice here for technicians who need guided procedures, network analysis, and high-resolution waveform capture rather than a general-purpose bench scope.
How We Picked the Best Four Channel Automotive Oscilloscopes
We focused on four-channel scopes that can support real automotive diagnostics, including sensor testing, ignition analysis, actuator checks, communication-bus troubleshooting, and simultaneous comparison of related signals. We considered electrical specifications, connection method, display or software experience, portability, accessory packages, and compatibility with common diagnostic workflows.
The selection includes dedicated automotive products such as the Autel, TOPDON, and automotive Hantek models, alongside general-purpose Rigol instruments that may appeal to technicians who also work on industrial or electronics projects. Specifications and included accessories can vary by seller, so verify the exact package before ordering.
Quick Comparison
| What to compare | Why it matters |
|---|---|
| Channels | Four inputs let you compare multiple sensors, circuits, or timing relationships at once. |
| Bandwidth and sample rate | Higher figures provide more headroom for fast transients, switching signals, and detailed waveform capture. |
| Connection and display | Handheld units are convenient at the vehicle; USB scopes depend on a computer; benchtop models offer integrated controls and screens. |
| Automotive accessories | Probes, current clamps, attenuators, and breakout leads can significantly affect real-world usefulness. |
Key Buying Factors for Four-Channel Automotive Oscilloscopes
Choose Suitable Bandwidth and Sampling Performance
Most engine sensors and low-speed vehicle circuits do not require extreme bandwidth, but faster ignition, injector, switching, and communications signals benefit from additional headroom. A high sample rate also helps preserve short events, provided the scope can record and display them effectively.
Check Voltage, Grounding, and Measurement Safety
Confirm the input voltage range, probe attenuation options, maximum ratings, and grounding arrangement before connecting to a vehicle. Never assume a general-purpose scope is safe for every automotive circuit, especially around ignition systems, hybrid or electric vehicles, and high-energy power electronics.
Prioritize the Right Workflow
Handheld automotive scopes are useful for mobile diagnostics and quick checks. USB models can offer strong value when a laptop is always available, while benchtop scopes generally provide better controls, larger displays, and deeper analysis features. Consider whether guided tests, saved waveform libraries, or vehicle-specific accessories are important to you.
Evaluate Included Probes and Future Expansion
A scope is only as useful as its connection tools. Look for suitable voltage probes, low-amp or high-amp current clamps, secondary ignition accessories, and breakout leads. Also check whether replacements and optional probes are readily available.
Who Should Buy Which Four Channel Automotive Oscilloscopes?
For Mobile Automotive Technicians
Choose a handheld or vehicle-focused package such as an Autel, TOPDON, or Micsig option when portability, guided diagnostics, and a self-contained workflow matter most.
For Budget-Conscious Workshop Users
A Hantek USB scope can provide four-channel capability at a comparatively accessible price, particularly if you already have a suitable Windows computer and are comfortable using PC software.
For Mixed Automotive and Electronics Work
Rigol instruments are worth considering when you need a more traditional laboratory oscilloscope for automotive signals as well as general circuit development. The DHO4204 emphasizes newer display and resolution features, while the DS1104Z Plus offers a familiar 100MHz, four-channel platform.
For Advanced Diagnostic Coverage
Prioritize the complete accessory bundle, probe specifications, capture memory, triggering controls, and software support rather than choosing solely by channel count. The best four-channel automotive oscilloscope is the one that safely captures the signals you need and fits the way you work.
